Bare Block Compressor Package
Performing under pressure
300PSI(2MPa) to 7300PSI(50MPa)
2M3/min to 10M3/min
The U.S. most advanced technology
Integrated system and compact design
High efficiency, energy saving

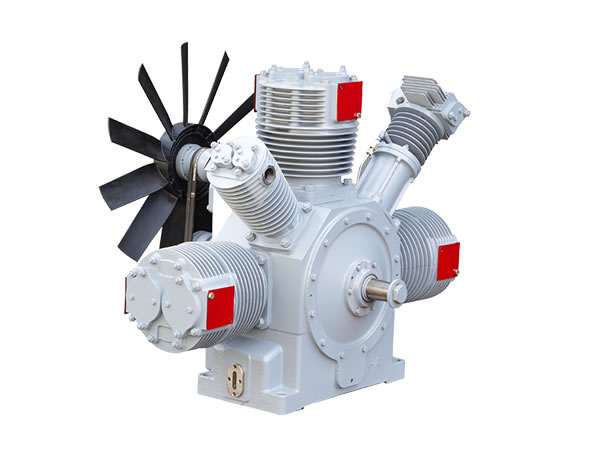

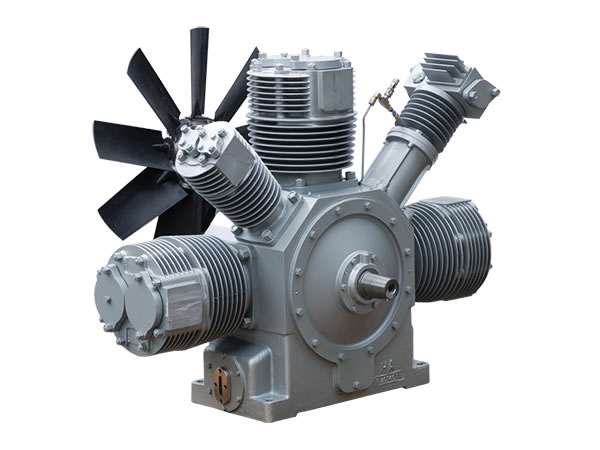

We offer compressor blocks in addition to our completed compressor packages in all markets.

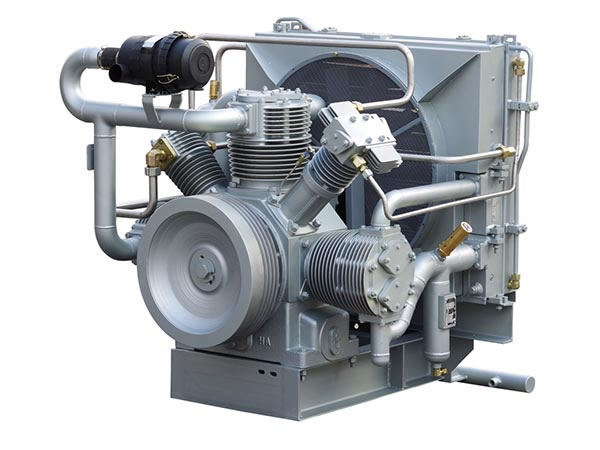

Compressor block+cooling fan+radiator+separator| Full Compressor type | Block type | Pressure | Capacity | Stage | Cylinder | RPM | Power | Size mm | Weight |
| Bar | m³/min | Kw | LXWXH | KG | |||||

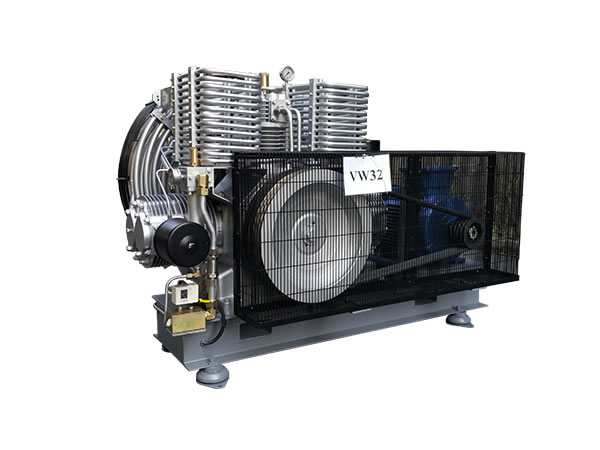

| HG3-30 | VW32B | 20-30 | 2.5-3.3 | 2 | 3 | 800-920 | 37 | 1150*960*1005 | 450 |
| HG5-30 | V52B | 20-30 | 5.3 | 2 | 5 | 1100 | 55 | 1265*1110*1315 | 575 |
| HG3-50 | VW43B | 30-50 | 3 | 3 | 4 | 1100 | 45 | 1265*1055*1245 | 480 |
| HG4-50 | VW43B | 30-50 | 4.25 | 3 | 4 | 1250 | 55 | 1265*1055*1245 | 480 |
| HG2-80 | VW33B | 50-80 | 2 | 3 | 3 | 1050 | 30 | 1150*960*1005 | 450 |
| HG2.5-80 | VW33B | 50-80 | 2.5 | 3 | 3 | 1300 | 37 | 1150*960*1005 | 450 |
| HG3-100 | V54B | 80-100 | 3.5 | 4 | 5 | 1050 | 55 | 1500*1250*1285 | 575 |
| HG4.5-100 | V54B | 80-100 | 4.6 | 4 | 5 | 1400 | 75 | 1500*1250*1285 | 575 |
| HG1.5-150 | VW442B | 100-150 | 1.5 | 4 | 4 | 900 | 30 | 1160*960*1005 | 480 |
| HG2-150 | VW442B | 100-150 | 2 | 4 | 4 | 1050 | 37 | 1160*960*1005 | 480 |
| HG3-150 | V552B | 100-150 | 2.8 | 5 | 5 | 1400 | 45 | 1425*1250*1365 | 575 |
| HG1.5-250 | VW442B | 150-250 | 1.5 | 4 | 4 | 900 | 30 | 1160*960*1005 | 480 |
| HG2-250 | V552B | 150-250 | 2 | 5 | 5 | 1200 | 45 | 1425*1250*1365 | 575 |
| HG3-250 | V552B | 150-250 | 2.8 | 5 | 5 | 1400 | 55 | 1425*1250*1365 | 575 |
| HG1.5-350 | VW443B | 250-350 | 1.5 | 4 | 4 | 900 | 37 | 1160*960*1005 | 480 |
| HG2-350 | V55B | 250-350 | 2 | 5 | 5 | 1200 | 45 | 1425*1250*1365 | 575 |
| HG2.5-350 | V55B | 250-350 | 2.5 | 5 | 5 | 1400 | 55 | 1425*1250*1365 | 575 |
| HG2.5-400 | V55B | 350-400 | 2.5 | 5 | 5 | 1300 | 55 | 1425*1250*1365 | 575 |
| Full Compressor type | Block type | Pressure | Capacity | Stage | Cylinder | RPM | Power | Size mm | Weight |
| Bar | m³/min | Kw | LXWXH | KG | |||||
| HG8-30 | W63-01 | 30 | 8 | 3 | 6 | 960 | 90 | 1410*1150*1000 | 970 |
| HG10-30 | W63-01 | 30 | 10 | 3 | 6 | 1050 | 110 | 1410*1150*1000 | 970 |
| HG8-50 | W63-01 | 30-50 | 8 | 4 | 6 | 850 | 110 | 1410*1150*1000 | 970 |
| HG10-50 | W64-3 | 30-50 | 10 | 4 | 6 | 950 | 132 | 1390*1150*1000 | 980 |
| HG8-100 | W64-3 | 60-100 | 8 | 4 | 6 | 850 | 132 | 1390*1150*1000 | 980 |
| HG10-100 | W64-3 | 60-100 | 10 | 4 | 6 | 960 | 160 | 1390*1150*1000 | 980 |
| HG5-150 | W64-3 | 100-150 | 5 | 4 | 6 | 960 | 90 | 1390*1150*1000 | 980 |
| HG8-150 | W64-3 | 100-150 | 8 | 4 | 6 | 960 | 132 | 1390*1150*1000 | 980 |
| HG5-250 | W65-01 | 150-250 | 5 | 5 | 6 | 850 | 110 | 1577*1150*1000 | 980 |
| HG8-250 | W65-01 | 150-250 | 8 | 5 | 6 | 960 | 160 | 1577*1150*1000 | 980 |
| HG5-350 | W65-01 | 150-350 | 5 | 5 | 6 | 850 | 110 | 1577*1150*1000 | 980 |
| HG8-350 | W65-01 | 150-350 | 7.5 | 5 | 6 | 960 | 160 | 1577*1150*1000 | 980 |
| HG6-400 | W65-01 | 350-400 | 6 | 5 | 6 | 800 | 110 | 1577*1150*1000 | 980 |
| Below is outlet 40 bar boosters, also can be 30 bar, based on your requirements | ||||||||||||
| Full booster type | Block type | Inlet Pressure | Inlet capacity | Outlet Pressure | Outlet Capacity | Stage | Cylinder | Cylinder Size | RPM | Power | Size mm | Weight |
| BarG | Nm³/min | Bar | Nm³/min | Kw | LXWXH | KG | ||||||
| PV1.88-40 | PV22B | 6 | 2.64m3/min | 40 | 1.88m3/min | 2 | 2 | 85x1,48x1(mm) | 750 | 15 | 1150*960*1005 | 400 |
| PV2.42-40 | PV32B | 8 | 3.39m3/min | 40 | 2.42m3/min | 2 | 3 | 85x1,40x2(mm) | 750 | 15 | 1150*960*1005 | 400 |
| PV2.95-40 | PV32B | 10 | 4.14m/min | 40 | 2.95m3/min | 2 | 3 | 85x1,40x2(mm) | 750 | 15 | 1150*960*1005 | 400 |
| PV2.35-40 | PV32B | 6 | 3.29m3/min | 40 | 2.35m3/min | 2 | 3 | 95x1,40x2(mm) | 750 | 18.5 | 1150*960*1005 | 400 |
| PV3.02-40 | PV32B | 8 | 4.23m3/min | 40 | 3.02m3/min | 2 | 3 | 95x1,48x2(mm) | 750 | 18.5 | 1150*960*1005 | 400 |
| PV3.69-40 | PV32B | 10 | 5.17m3/min | 40 | 3.69m3/min | 2 | 3 | 95x1,48x2(mm) | 750 | 18.5 | 1150*960*1005 | 400 |
| PV2.87-40 | PV32B | 6 | 4.02m3/min | 40 | 2.87m3/min | 2 | 3 | 105x1,48x2(mm) | 750 | 22 | 1150*960*1005 | 400 |
| PV3.3-40 | PV32B | 8 | 4.63m3/min | 40 | 3.3m3/min | 2 | 3 | 95x1,48x2(mm) | 820 | 22 | 1150*960*1005 | 400 |
| PV4.03-40 | PV32B | 10 | 5.65m3/min | 40 | 4.03m3/min | 2 | 3 | 95x1,48x2(mm) | 820 | 22 | 1150*960*1005 | 400 |
| PV4.02-40 | PV32B | 6 | 5.63m3/min | 40 | 4.02m3/min | 2 | 3 | 105x1,48x2(mm) | 1050 | 30 | 1150*960*1005 | 400 |
| PV4.63-40 | PV32B | 8 | 6.48m3/min | 40 | 4.63m3/min | 2 | 3 | 95x1,48x2(mm) | 1150 | 30 | 1150*960*1005 | 400 |
| PV5.16-40 | PV32B | 10 | 7.24m3/min | 40 | 5.16m3/min | 2 | 3 | 95x1,48x2(mm) | 1050 | 30 | 1150*960*1005 | 400 |
| PV4.6-40 | PV32B | 6 | 6.43m3/min | 40 | 4.6m3/min | 2 | 3 | 105x1,48x2(mm) | 1200 | 37 | 1150*960*1005 | 400 |
| PV5.11-40 | PV32B | 8 | 7.16m3/min | 40 | 5.11m3/min | 2 | 3 | 95x1,48x2(mm) | 1270 | 37 | 1150*960*1005 | 400 |
| PV6.25-40 | PV32B | 10 | 8.75m3/min | 40 | 6.25m3/min | 2 | 3 | 95x1,48x2(mm) | 1270 | 37 | 1150*960*1005 | 400 |
| PV6.02-40 | PV32B | 6 | 8.44m3/min | 40 | 6.02m3/min | 2 | 3 | 85x2,65x1(mm) | 1200 | 45 | 1150*960*1005 | 400 |
| PV7.25-40 | PV52B | 8 | 10.2m3/min | 40 | 7.25m3/min | 2 | 5 | 85x3,67x2(mm) | 750 | 45 | 1265*1110*1315 | 575 |
| PV8.86-40 | PV52B | 10 | 12.4m3/min | 40 | 8.86m3/min | 2 | 5 | 85x3,67x2(mm) | 750 | 45 | 1265*1110*1315 | 575 |
| PV7.03-40 | PV32B | 6 | 9.84m3/min | 40 | 7.03m3/min | 2 | 3 | 85x2,65x1(mm) | 1400 | 55 | 1150*960*1005 | 400 |
| PV8.7-40 | PV52B | 8 | 12.2m3/min | 40 | 8.7m3/min | 2 | 5 | 85x3,67x2(mm) | 900 | 55 | 1265*1110*1315 | 575 |
| PV10.6-40 | PV52B | 10 | 14.9m3/min | 40 | 10.6m3/min | 2 | 5 | 85x3,67x2(mm) | 900 | 55 | 1265*1110*1315 | 575 |
| PV9.56-40 | PV52B | 6 | 13.4m3/min | 40 | 9.56m3/min | 2 | 5 | 85x3,67x2(mm) | 1270 | 75 | 1265*1110*1315 | 575 |
| PV11.6-40 | PV52B | 8 | 16.3m3/min | 40 | 11.6m3/min | 2 | 5 | 85x3,67x2(mm) | 1200 | 75 | 1265*1110*1315 | 575 |
| PV12.4-40 | PV52B | 10 | 17.4m3/min | 40 | 12.4m3/min | 2 | 5 | 85x3,67x2(mm) | 1050 | 75 | 1265*1110*1315 | 575 |
As a reliable air compressor manufacturer in China, HIGH Air Company provides this bare block compressor package with the capacity of 2m3/min to 10m3/min. With decades of experience in designing and manufacturing air compressors, our company can offer a variety of industrial compressors such as high pressure air compressor, nitrogen compressor, piston air compressor as well as natural gas compressors and air compression solutions for clients.
