High Pressure Air Compressor
Performing under pressure
300PSI(2MPa) to 7300PSI(50MPa)
2M3/min to 10M3/min
Air/natural gas/nitrogen/helium
Integrated system and compact design
Max. 160KW
High efficiency, energy saving
Industry Compressor
High Air assembles these high quality high pressure piston/reciprocating compressor pumps for pressures from 300PSI(2MPa) to 7300PSI(50MPa). The pump is suitable for the compression of multiple gases including air, helium, nitrogen, natural gas and more. The compressors are often used in the production of PET bottles, hydrop ower stations, military, aviation and oil/gas industry applications.
Media
Air compressor
Nitrogen compressor/nitrogen booster
Hydrogen compressor/hydrogen booster
Natural gas compressor/natural gas booster
Oil/Gas Applications
Marine seismic research
Pipeline testing
Well service
Platform motion compensation
Fuel injection
Well kickoff
Air drilling
Under balance drilling
Coil tube drilling
Industry Applications
Hydrop ower station
Marine
Wind tunnels
Leakage testing
PET bottle blowing
Pump and storage hydrop ower station
Military
-

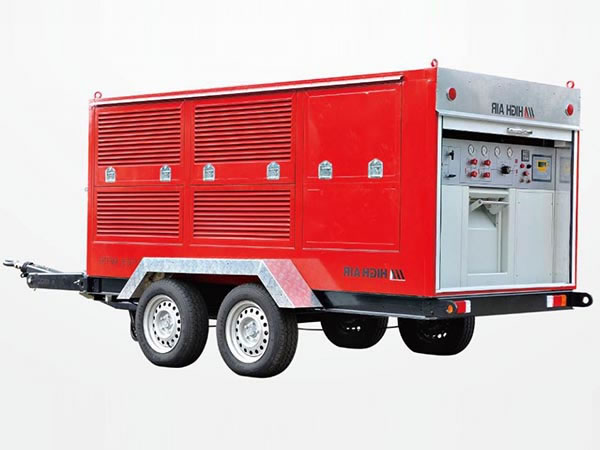

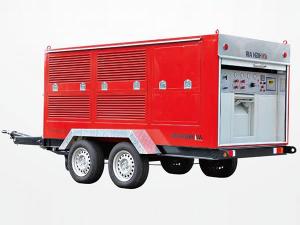

High pressure air compressor trailer
Diesel engine & motor dual driven -

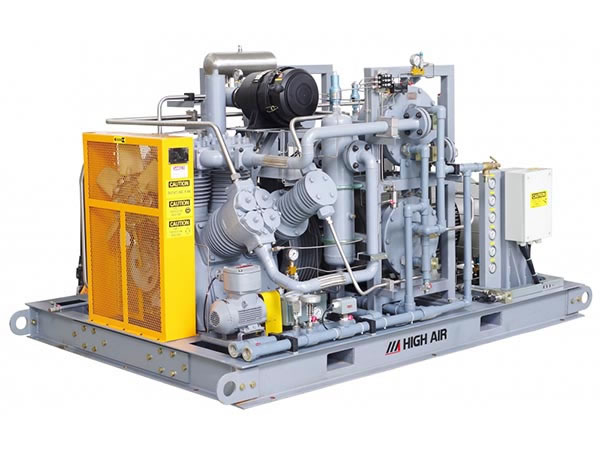

High pressure nitrogen booster
Inlet pressure 90 PsiG, outlet pressure 4800PsiG 900M3/H
Nitrogen well kickoff -

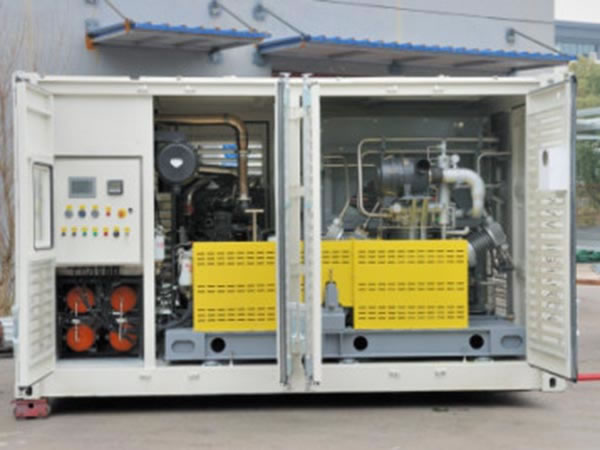

Diesel engine driven high pressure compressor
Air 8M3/min 3000Psi for marine seismic
| Model | Capacity | Maximum working | Stages | Cylinders | Motor power | Dimension | Weight |
| M3/MIN | Pressure bar | KW | MM | KG | |||
| HG 3/30 | 3.3 | 30 | 2 | 3 | 37 | 1800*950*1300 | 1000 |
| HG 5/30 | 5 | 30 | 2 | 5 | 55 | 2200*1200*1440 | 1250 |
| HG 6/30 | 6 | 30 | 2 | 5 | 75 | 2200*1200*1440 | 1350 |
| HG 8/30 | 8 | 30 | 3 | 6 | 90 | 3100*2000*1850 | 3750 |
| HG 10/30 | 10 | 30 | 3 | 6 | 110 | 3100*2000*1850 | 3750 |
| HG 3/50 | 3 | 50 | 3 | 4 | 45 | 2200*1200*1440 | 1350 |
| HG 4/50 | 4.25 | 50 | 3 | 4 | 55 | 2200*1200*1440 | 1450 |
| HG 8/50 | 8 | 100 | 3 | 6 | 90 | 3100*2000*1850 | 3750 |
| HG 10/50 | 10 | 100 | 3 | 6 | 110 | 3100*2000*1850 | 3750 |
| HG 2/80 | 2 | 80 | 3 | 3 | 30 | 1800*950*1300 | 950 |
| HG 2.5/80 | 2.5 | 80 | 3 | 3 | 37 | 1800*950*1300 | 980 |
| HG 3/100 | 3 | 100 | 4 | 5 | 45 | 2000*1200*1400 | 1450 |
| HG 4.5/100 | 4.5 | 100 | 4 | 5 | 75 | 2200*1200*1400 | 1550 |
| HG 8/100 | 8 | 100 | 4 | 6 | 110 | 3100*2000*1850 | 3750 |
| HG 10/100 | 10 | 100 | 4 | 6 | 132 | 3100*2000*1850 | 3750 |
| HG 1.5/150 | 1.5 | 150 | 4 | 4 | 30 | 1800*950*1250 | 1050 |
| HG 2/150 | 2 | 150 | 4 | 5 | 45 | 2200*1200*1500 | 1450 |
| HG 3/150 | 3 | 150 | 4 | 5 | 55 | 2200*1200*1400 | 1350 |
| HG 5/150 | 5 | 150 | 4 | 6 | 90 | 3100*2000*1900 | 3750 |
| HG 8/150 | 8 | 150 | 4 | 6 | 132 | 3100*2000*1900 | 3750 |
| HG 1.5/250 | 1.5 | 250 | 4 | 4 | 30 | 1800*950*1250 | 1050 |
| HG 2/250 | 2 | 250 | 4 | 4 | 45 | 1800*950*1250 | 1150 |
| HG 3/250 | 3 | 250 | 4 | 5 | 55 | 2200*1200*1400 | 1350 |
| HG 5/250 | 5 | 250 | 5 | 6 | 110 | 3100*2000*1900 | 3750 |
| HG 8/250 | 8 | 250 | 5 | 6 | 160 | 3100*2000*1900 | 3750 |
| HG 1.5/350 | 1.5 | 350 | 4 | 4 | 30 | 1800*950*1250 | 1050 |
| HG 2/350 | 2 | 350 | 4 | 4 | 45 | 1800*950*1250 | 1150 |
| HG 2.5/350 | 2.5 | 350 | 5 | 5 | 75 | 2200*1200*1500 | 1450 |
| HG 5/350 | 5 | 350 | 5 | 6 | 110 | 3100*2000*1900 | 3750 |
| HG 8/350 | 8 | 350 | 5 | 6 | 160 | 3100*2000*1900 | 3750 |
| HG 2.5/400 | 2.5 | 400 | 5 | 5 | 75 | 2200*1200*1500 | 1450 |
| HG 6/400 | 6 | 400 | 5 | 6 | 110 | 3100*2000*1900 | 3750 |
HIGH Air Company, as a reliable air compressor manufacturer, offers high pressure air compressor, nitrogen compressor, and other industrial compressors as well as air compression solutions for customers. With years of experience in designing and manufacturing air compressors, we are able to provide nitrogen compressor, natural gas compressor, reciprocating air compressor, etc. according to customer needs.
