Gas gathering compressor
Symmetry in motion
A reciprocating compressor that has it all

Meet your needs
3M³/Min-100M³/Min
2MPa to 50MPa

Features

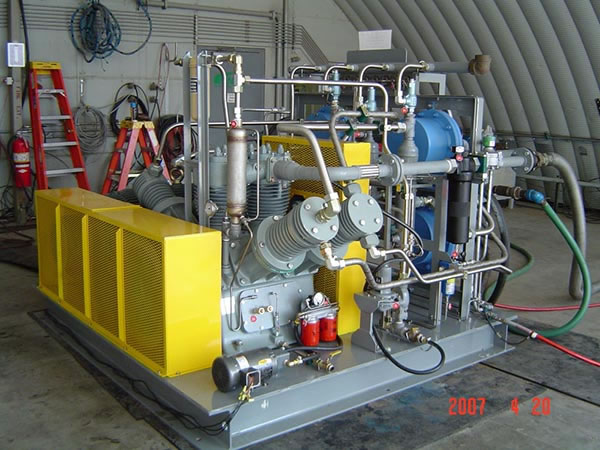

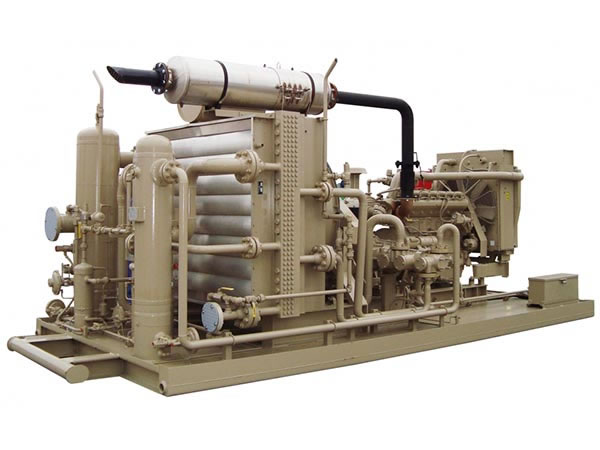

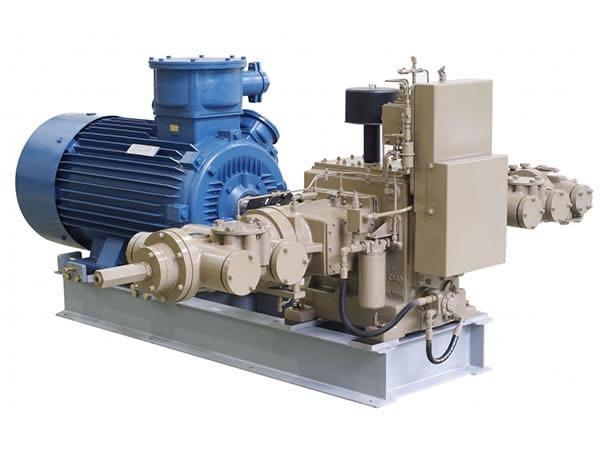

This High Air reciprocating compressor is a an all-around workhorse gas pump. The H and W models offer more quality features than any small horsepower reciprocating compressor within the industry. The H models combine functional simplicity with innovative, proven and balanced operation to provide smooth running, low maintenance working lifetimes.

More quality features than any reciprocating compressor of comparable size in the industry:
1. True balance opposed configuration with cylinders mounted inline eliminates the horizontal couple for a smooth running, high performance and long lasting reciprocating compressor.
2. Designed, engineered and built for most natural gas, process, or industrial applications.
3. Innovative piston valve design offers higher volumetric efficiency, uniform flow through the piston chamber, lower piston speeds, minimized parts requirements, and reduced maintenance expenses.
4. Simplified cooling system eliminates external cooling system requirements for lower maintenance and simplicity of packaging.
5. Oil free system eliminates oil loss or oil entrainment through the gas stream and offers a well-engineered product that is also suitable in other markets including oil free air processing for medical, sanitary or industrial systems.
6. Two compartment packing case for sour gas operation or other purge system requirements.
7. All cylinder castings and components have been engineered and rated according to the most thorough FEA design evaluation.
8. Rugged construction and flexible design to meet the performance demands of today's oil & gas patch.
9. Complete cylinder line up with bore diameters from 2-1/2" to 10".

Application

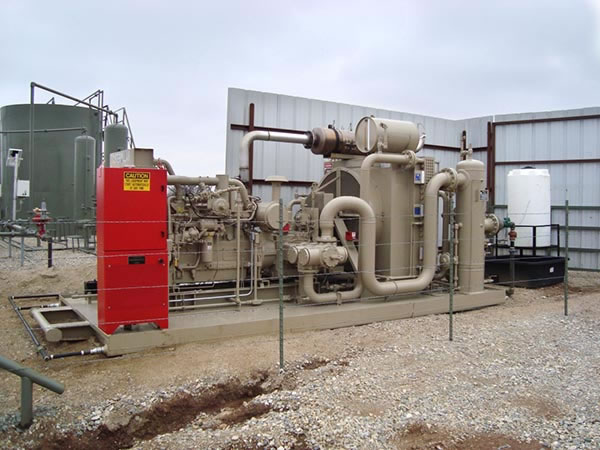

1. Gas gathering
2. Air drilling
3. Oilfield nitrogen injection
4. Nitrogen drilling
5. Gas lift
