Natural gas engine driven
Unparalleled utility

Gas well enhancement
Shell gas/tight gas
More revenue, little emission
Model: HX10
12000M3/D @ inlet pressure 4.3PsiG 53KW driven by natural gas engine
Model:HX12
22000M3/D @ inlet pressure 4.3PsiG 80KW driven by natural gas engine

Maximize your resources
Gas well enhancement services

Maximum Production
Total automation maintains optimal capacity for your well.
Unparalleled utility
Precision flow control in all applications from simple wellhead production to complex plunger lift systems.
Ultimate Reliability
Every feature combines time tested and proven hardware with sophisticated process controls and engineering.

Features

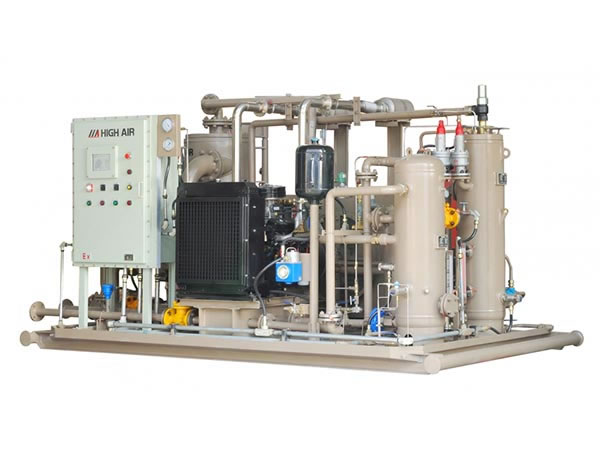

High Air wellhead compressor system provides optimal solutions for well enhancement, natural gas extraction, coalbed methane removal and many other industrial applications.
• A variety of pressure and capacity ranges, meet the requirements of diverse applications.
• Perfect fault maintenance system, for strict monitoring and protection of compressors.
• Standard natural gas engine driven.
• Explosion-proof control and motor upon requirements.
• All climate kit for cold area.
• Dedicated VFD frequency control system, to achieve a flow regulation range from 20% to 100%.
• Compressor can be directly installed on a truck or a trailer, implement the requirement of portable works.

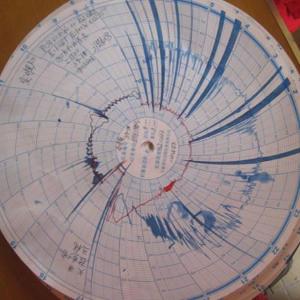

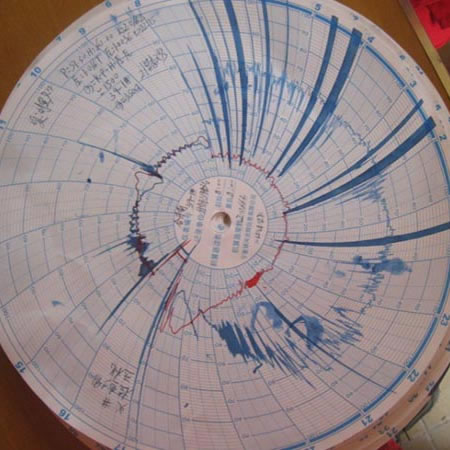

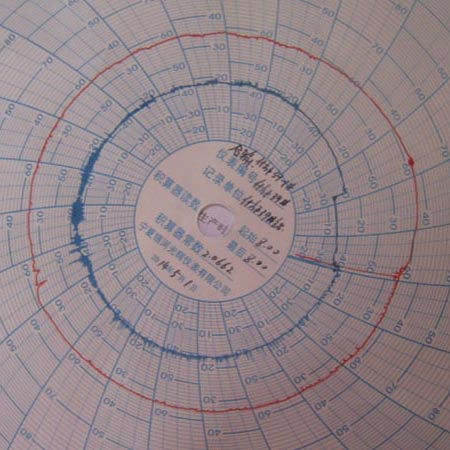

Sichua, China tight gas well enhancement

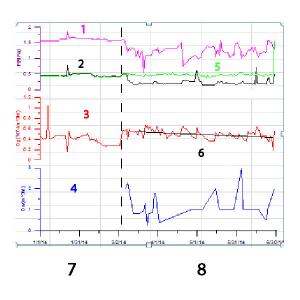

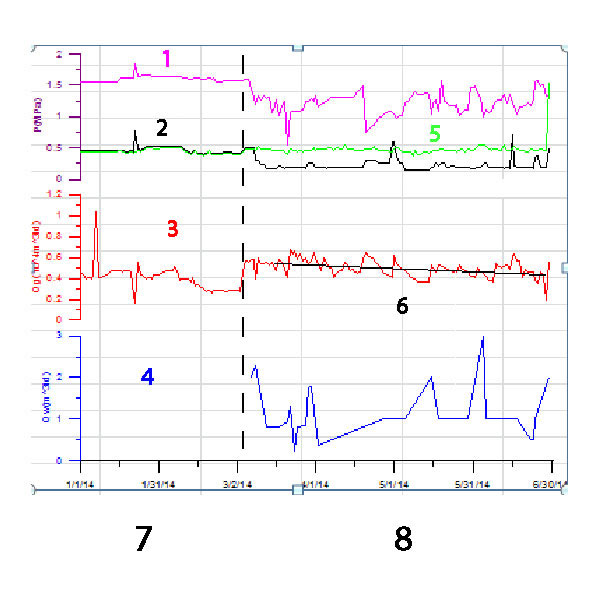

1. Casing pressure, 2. oil pressure, 3. daily gas, 4. daily water, 5. official network pressure, 6. single point pressurization, 7. before, 8. after
